20ft New Open-Top Container

excl. VAT · incl. VAT: €4,401.81

Factory-fresh crane loading capability: 20ft new open top container for sale

For industrial manufacturers, project forwarders, machinery fabricators, and raw material exporters requiring top-loading access for heavy cargo in factory-fresh condition, investing in a 20ft new open top container for sale delivers the premier crane-loading platform. Built to ISO specifications measuring 589.79 cm in internal length, 235.20 cm in width, and 238.99 cm in height (external dimensions 605.79 x 243.79 x 259.11 cm), this 32.50 m³ open-top container allows direct overhead crane drops through its removable roof opening. When a load is too tall to pass through end doors or too heavy to push in on a forklift, lowering it vertically through the open roof is the fastest and safest way to load it.

With an unladen tare weight of 2,300 kg and an authorized payload capacity of 28,180 kg, the container achieves a maximum gross operating mass of 30,480 kg. Delivered in pristine single-trip condition directly from shipyard fabrication, each unit arrives spotless, dry, and ready for immediate deployment. A 20ft new open top container for sale keeps the full strength, stacking ability, and weathertight security of a standard box while trading the fixed steel roof for a removable tarpaulin cover that opens the whole top of the container to a crane hook.

This combination of overhead access and standard ISO handling is why open-top containers are a staple of project and heavy-industry logistics. The cargo can be craned in at the factory, covered and shipped through the ordinary container network, and craned back out at destination, all without the load ever having to fit through a doorway.

Removable steel roof bows, heavy PVC tarpaulin, and Corten A sidewalls

The structural engineering of the open-top container is tailored for vertical loading flexibility. In place of a solid steel roof diaphragm, the container features removable arched steel roof bows that slot into perimeter side rail pockets, supporting a heavy-duty, waterproof PVC tarpaulin cover. The bows lift out individually, so the operator can open as much or as little of the roof as a particular load requires and then replace them to support the cover.

The sidewalls are fabricated from 1.6 mm thick vertically corrugated Corten A weathering steel panels, reinforced with heavy cold-rolled upper box rails that maintain structural rigidity without a rigid roof. When exposed to outdoor atmospheric elements, Corten steel forms a dense protective oxide patina that arrests deep rust progression, ensuring robust long-term durability in outdoor yard service. The reinforced top rails carry the racking and stacking loads that a fixed roof would normally share, so the open-top box can still be stacked and shipped like any standard container.

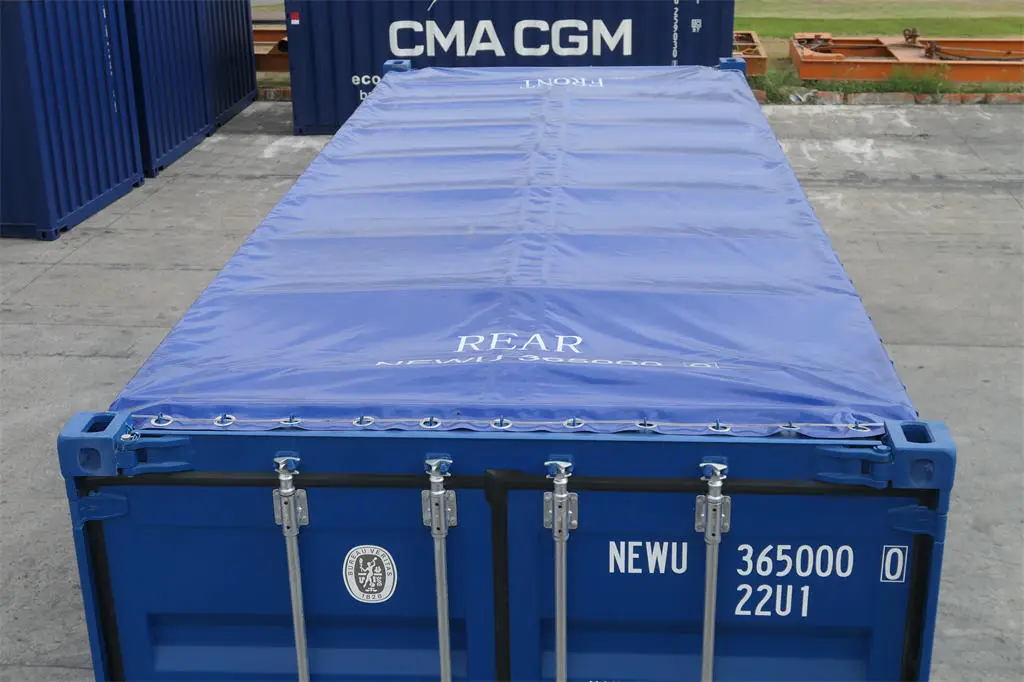

The heavy PVC tarpaulin is UV-stabilised and fully waterproof, and once tensioned over the bows it sheds rain and snow just as effectively as a steel roof while remaining light enough for two workers to remove and refit by hand.

Swing-out rear door header beam and unobstructed forklift entry

Loading tall machinery through the end doors is made effortless by a specialized swing-out rear door header beam. The upper door header pivots open 180 degrees or can be unpinned and removed completely, allowing forklifts with tall mast attachments or cranes to move machinery into the container without striking the door frame. This gives you a second loading route, so cargo that is tall but can still roll or be pushed in enters through the end rather than over the top.

The rear cargo doors feature four heavy galvanized steel locking bars that secure the doors firmly against the frame. Multi-lip EPDM rubber gaskets seal the door perimeter tightly, while the heavy-duty PVC tarpaulin is secured around the perimeter eyelets with a continuous steel-core TIR customs cord. The TIR cord can be sealed by customs, which lets the loaded open-top container cross borders under the same bonded-transit rules as a fully enclosed box.

Between the removable header and the open roof, the container offers the most flexible loading geometry of any twenty-foot unit, accepting cargo from the top, from the end, or from both at once.

Heavy-duty 28 mm marine hardwood floor and concentrated point loading

The interior cargo deck is constructed from 28 mm multi-ply tropical hardwood marine plywood, pressure-treated with moisture-repellent and anti-fungal sealers. Supported by heavy-duty steel transverse crossmembers welded at close intervals along the bottom rails, the deck supports intense forklift axle loadings and concentrated machinery skid weights. This matters for open-top work, where a crane often sets a single dense object such as a machine base or a stone block onto a small area of the floor.

Multiple forged steel lashing D-rings rated at 1,000 kg each are welded along the lower side rails and vertical corner posts, allowing operators to lash heavy equipment, steel coils, and machinery bases securely with high-tensile ratchet straps. With the roof open, riggers can attach the crane slings, lower the load, and lash it down all from above, which is far quicker and safer than working blind inside a closed box.

The combination of a strong point-loading floor and closely spaced lashing rings means an oversized item can be both supported and fully restrained for road, rail, and sea movement without any additional cradle.

Heavy equipment transport, raw materials, and project cargo

Factory-new open-top containers are widely deployed across industries requiring top loading. Scrap metal processing yards use them for loading metal turnings with grapple excavators, stone quarries load raw granite blocks directly via crane, and machinery manufacturers transport large diesel generators and turbines safely. Timber mills, glass makers, and steel service centres also rely on open-tops to move tall or awkward products that no end door could admit.

The removable tarpaulin allows rapid covering after loading, protecting valuable cargo from rain, snow, and road dirt during multimodal transport. Once the destination is reached, the cover comes off and the same crane that loaded the container lifts the cargo straight back out, keeping the whole cycle fast and simple.

CSC safety approval plate and international multimodal transit

Every new one-trip 20ft new open top container for sale comes with an active Convention for Safe Containers (CSC) safety approval plate riveted directly to the cargo door. Certified by international classification societies such as Bureau Veritas or DNV GL, the container is fully approved for worldwide intermodal freight transit via road chassis, rail flatcars, and container ships. The certification confirms that the reinforced open-top structure meets the same safety standard as a conventional closed container.

Standard ISO corner castings at all eight structural nodes permit rapid lifting and securing using reach stackers, spreader beams, twistlocks, and bridge fitting clamps. Because the external dimensions match a standard twenty-foot box exactly, the open-top unit stacks and locks into vessel cells, chassis, and rail wagons using the ordinary equipment at every terminal.

Maintenance procedures and tarpaulin care

To ensure long-term weather protection, inspect the PVC tarpaulin annually for tears and patch any punctures with heavy-duty vinyl repair kits. Keep the roof bow sockets clean of debris and grease the swing-out door header hinge pivot semi-annually. A well-maintained tarpaulin and a free-moving header are what keep an open-top container as weathertight and easy to load as the day it was built.

Place the container on four level concrete foundation pads or timber blocks to maintain frame squareness and ensure smooth operation of the swing-out header and rear doors. A level base is especially important on an open-top box, because the top rails carry more of the structural load and a twisted frame can make both the header and the tarpaulin harder to seat correctly.

Depot inventory and crane truck transport across Central Europe

We maintain comprehensive stock of brand-new single-trip 20ft open top containers across major depot hubs in Germany and Central Europe. Each container is inspected before dispatch to ensure spotless interior conditions and flawless mechanical function, with the roof bows, tarpaulin, and swing-out header all checked before delivery.

We provide flatbed road transport and self-unloading crane truck delivery to position your open top container accurately on your prepared site foundation. Our team can advise on crane access and load restraint so that you can put your 20ft new open top container for sale straight to work receiving overhead loads on arrival.

What is the main advantage of a 20ft open-top shipping container?

The open roof allows overhead cranes, gantry hoists, and excavators to load heavy, tall, or awkward machinery, steel sections, and bulk cargo directly from above without the height restrictions and maneuvering limitations imposed by a standard solid steel roof. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

How does the removable tarpaulin roof protect cargo from weather?

The roof is covered with a heavy-duty, 100% waterproof PVC tarpaulin supported by curved steel roof bows that shed rainwater and snow to the sides. A continuous steel TIR wire cable threads through eyelets and locks tightly to meet customs requirements.

What is the function of the swing-out rear door header beam?

The upper door header unlocks and swings 180 degrees to the side or can be removed completely. This creates an unobstructed full-height rear opening, allowing forklifts to drive long materials or tall machinery straight into the container without hitting the roof beam.

What are the exact dimensions and weight ratings of this container?

External dimensions are 605.79 cm length, 243.79 cm width, and 259.11 cm height. Internal dimensions are 589.79 cm length, 235.20 cm width, and 238.99 cm height, providing 13.84 m² of floor space, 32.50 m³ volume, and a tare weight of 2,300 kg with 30,480 kg max gross. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

Is the 20ft open-top container CSC certified for international shipping?

Yes, every new one-trip unit includes a valid CSC safety approval plate. It is fully certified under ISO standards for multimodal transport via road flatbeds, rail wagons, and container cargo vessels across Europe and worldwide maritime trade routes. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.
