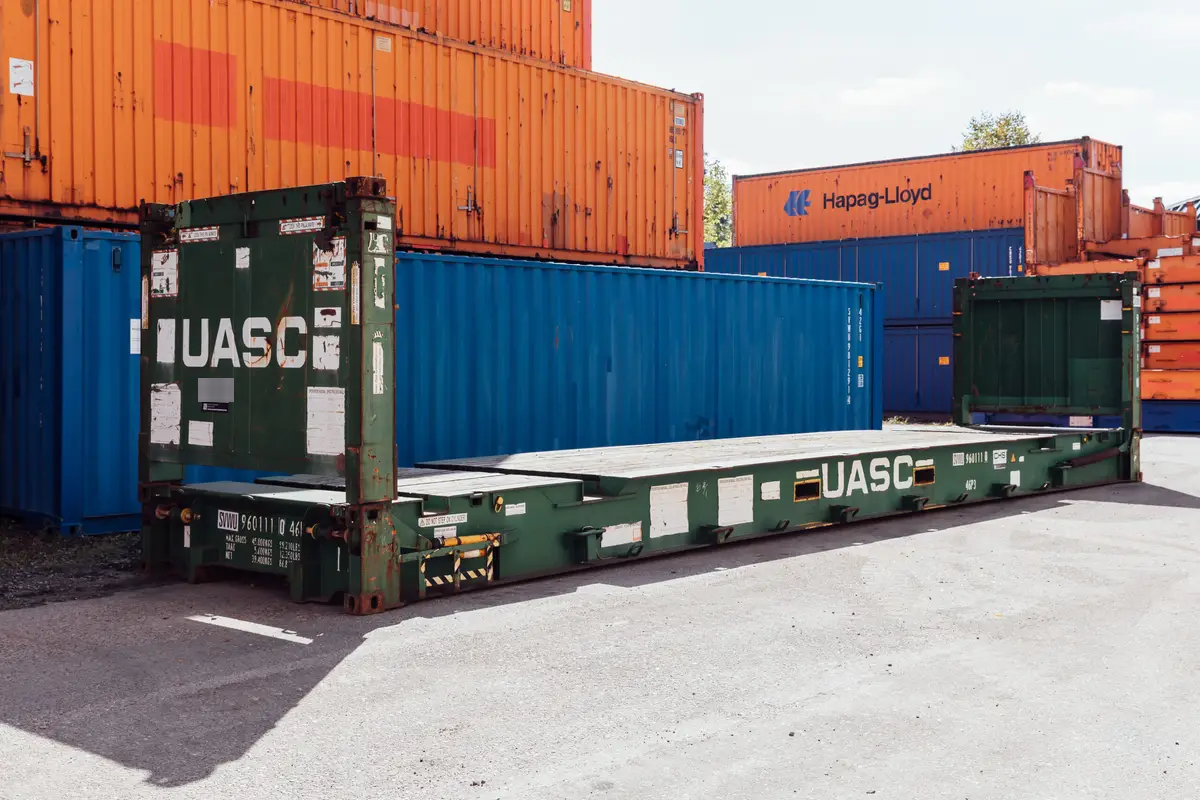

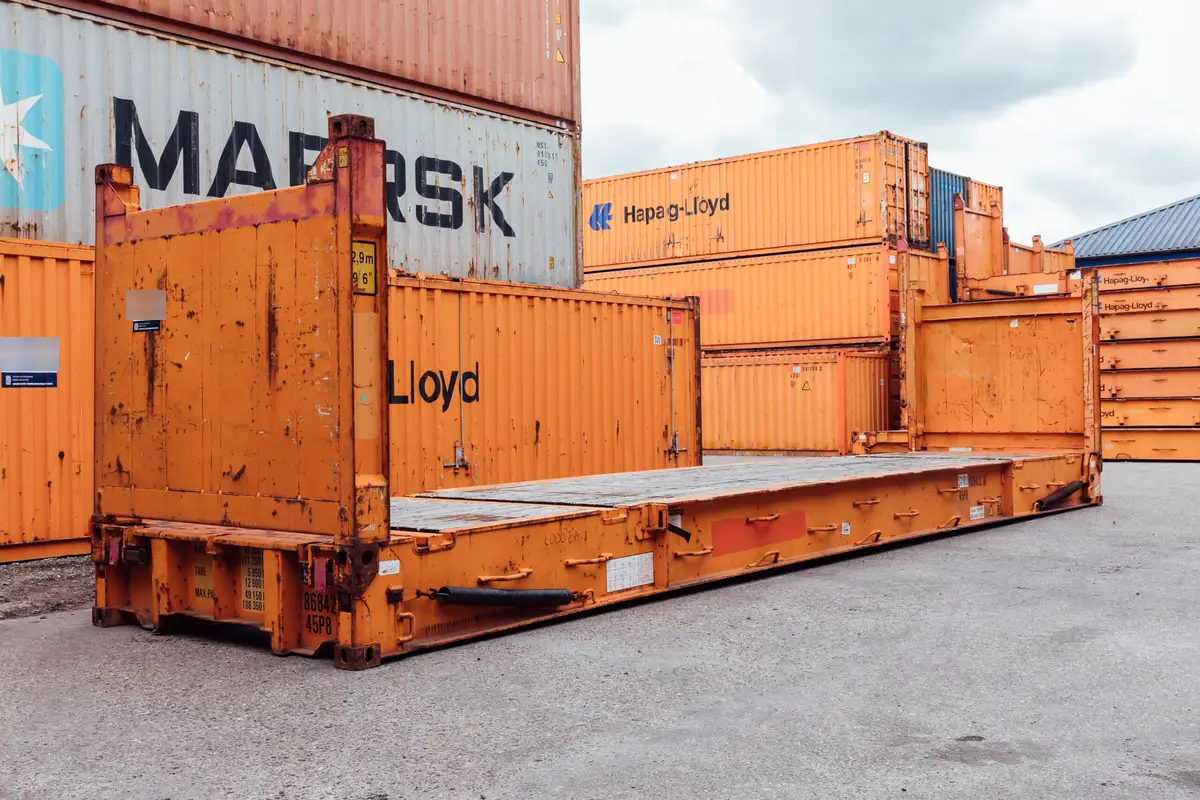

40ft Used Flat-Rack Container

excl. VAT · incl. VAT: €3,509.31

Heavy out-of-gauge industrial transport: 40ft used flat rack container for sale

For project cargo forwarders, heavy plant manufacturers, structural steel fabricators, and mining logistics operations transporting heavy, oversized, or wide machinery that exceeds standard container dimensions, sourcing a 40ft used flat rack container for sale delivers the definitive heavy-haul platform. Built to standard ISO dimensions measuring 12.192m in length and 2.438m in width with folding end walls, this open-sided platform provides 27.67 m² of usable floor space for loads with extreme width or height. Where an enclosed box would simply refuse the cargo, the flat rack accepts it from the side or from above and carries it through the same intermodal network of ships, trains, and trucks.

With an unladen tare weight of 4,800 kg and a massive maximum gross weight rating of 45,000 kg, the flat rack supports extraordinary single-piece payloads up to 40,200 kg. Every pre-owned flat rack in our depot undergoes strict structural inspection by certified container surveyors, ensuring that main longitudinal sills, end-wall hinge assemblies, and floor planking satisfy rigorous Cargo Worthy standards. Choosing a used unit gives you this heavy-lift capacity at a fraction of the price of a new rack, which matters when a project needs several platforms for a single oversized consignment.

A 40ft used flat rack container for sale is the workhorse of the out-of-gauge trade precisely because it combines brute structural strength with ISO compatibility. The same corner castings that let a standard box stack on a vessel let the flat rack lock into the identical cell guides and twistlock sockets, so your oversized load moves through terminals on the same handling equipment as ordinary freight.

Massive high-tensile longitudinal sills and folding end wall engineering

Unlike standard dry freight boxes that rely on wall corrugations for stiffness, the flat rack derives its immense strength from oversized, heavy-gauge structural steel I-beams running along the entire bottom perimeter. Fabricated from high-tensile Corten A weathering steel alloy, the longitudinal sills absorb extreme bending moments from concentrated machinery weights without deflection. This is the reason a single transformer or a heavy casting can rest on two points of the deck without buckling the frame between them.

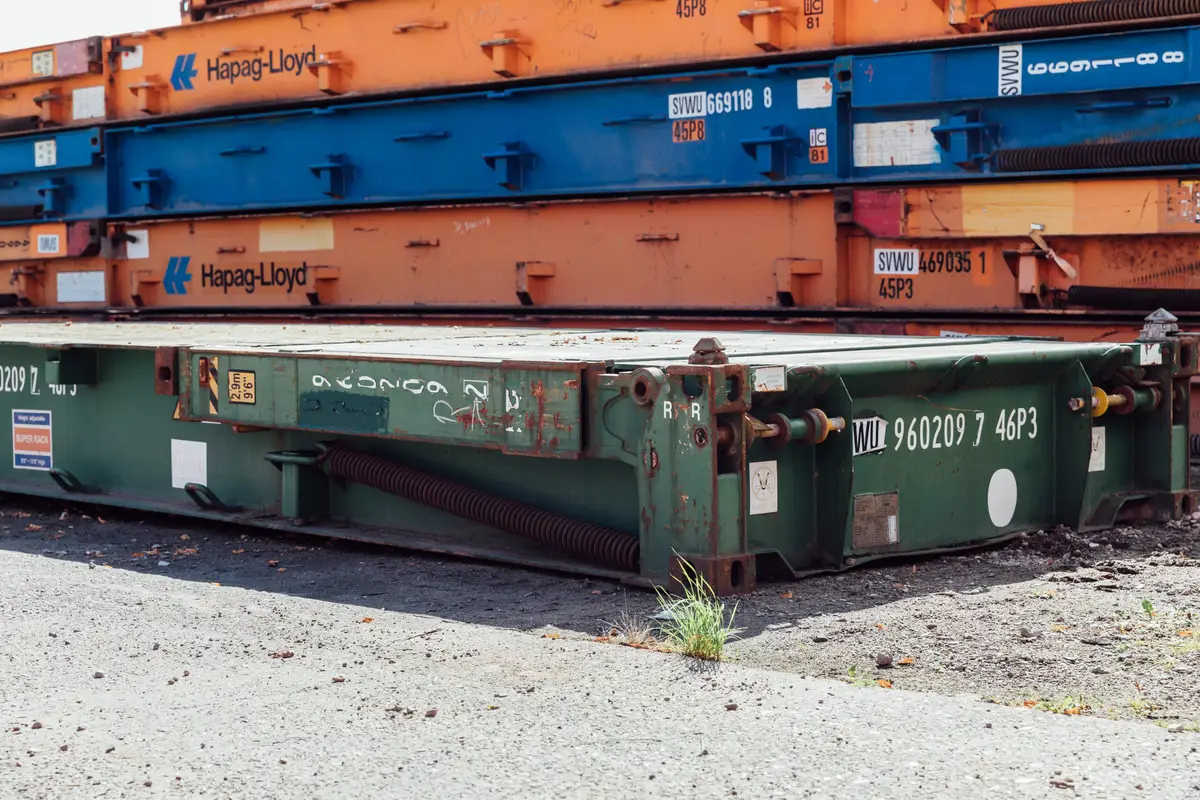

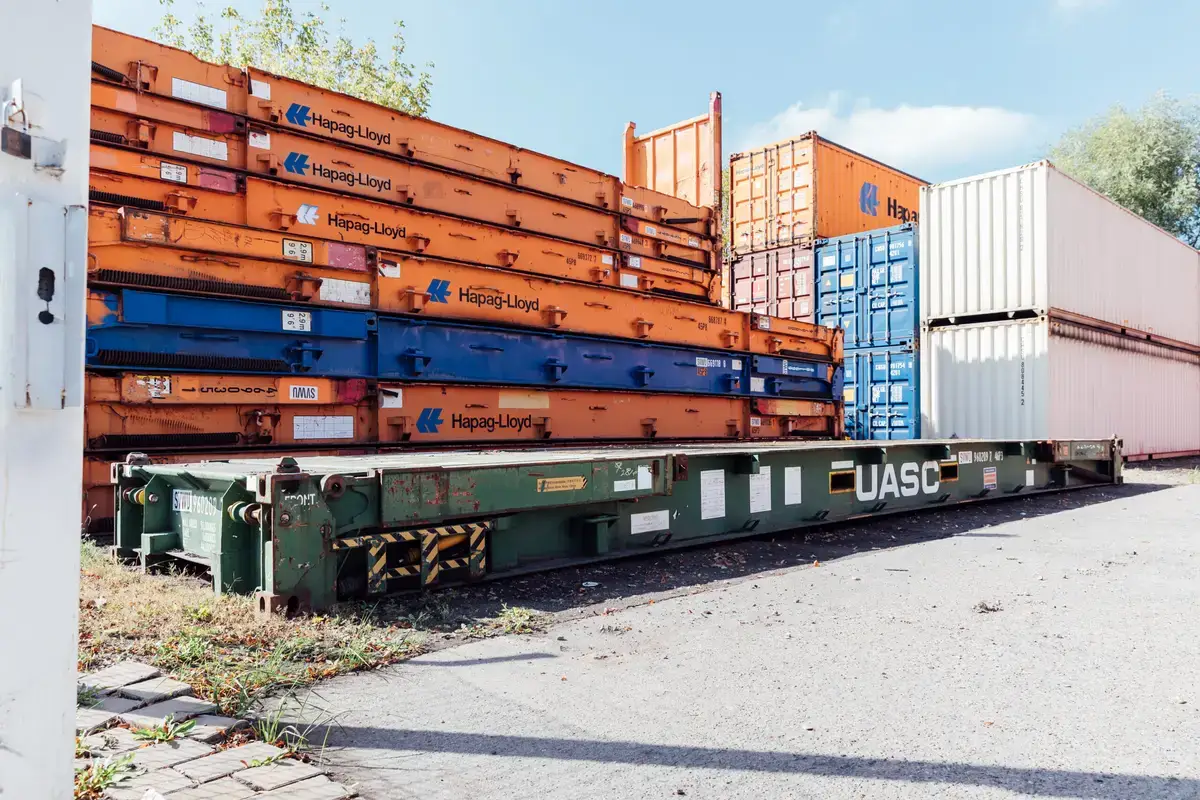

The two reinforced end walls feature heavy-duty spring-assisted hinge mechanisms that allow them to be erected upright for cargo transport or folded completely flat flush with the floor for empty return shipping, allowing multiple flat racks to be stacked together into a single standard container shipping slot. Collapsing the walls turns four or five empty racks into one stack the size of a single container, which slashes the cost of repositioning empties after a project.

When raised, the end walls provide fore-and-aft restraint for the load and carry the stacking loads of any containers placed on top, so the erected rack behaves structurally much like a conventional box while leaving both long sides fully open for loading.

Heavy-duty softwood timber plank decking and concentrated axle support

The cargo platform is decked with thick, heavy-duty treated softwood timber planks recessed between structural steel crossmembers. The timber deck provides high friction against sliding and cushions steel machinery tracks, heavy transformer bases, and excavator undercarriages. Timber also lets riggers drive dunnage nails and timber chocks directly into the deck to build a custom cradle for an awkward load, something that is impossible on a bare steel floor.

Along the outer side sills and corner columns, multiple forged steel heavy-duty lashing rings (rated from 3,000 kg up to 5,000 kg each) are welded at close intervals, providing secure anchor points for heavy chains, wire rope winches, and high-tensile ratchet binders. The close spacing means a rigger can always find an anchor point at the correct angle to restrain the load in every direction, meeting the lashing calculations required for sea transport.

Beneath the planking, the steel crossmembers transfer concentrated point loads into the main sills and out to the corner castings, spreading a heavy machine base across the full frame rather than letting it punch through the deck.

Over-width and over-height cargo capabilities for project freight

Flat rack containers are the industry standard for out-of-gauge (OOG) freight forwarding. Industrial equipment such as crushing machinery, wind turbine components, offshore winches, commercial boats, and military tracked vehicles that exceed 2.43m width or 2.60m height can be loaded effortlessly from the sides or overhead. The open platform removes every obstruction, so a mobile crane can lower a load straight down onto the deck and riggers can lash it in place without working inside a confined box.

Corner castings at all eight structural nodes permit standard twistlock securing on container vessels, specialized multi-axle heavy haulage trailers, and railway flatcars. Because the rack presents the exact external footprint of a standard 40ft container, it slots into vessel cell guides, chassis, and rail wagons designed for ISO boxes, keeping an oversized cargo inside the efficient intermodal system rather than forcing it onto specialised break-bulk handling.

CSC safety certification and international maritime survey

Every 40ft used flat rack container for sale in our inventory carries a certified Convention for Safe Containers (CSC) safety plate with updated survey approval, certifying structural strength for intermodal road, rail, and sea transport. For a platform routinely loaded near its 45,000 kg gross rating, this certification is not a formality but a confirmation that the sills, castings, and welds have been surveyed and found fit to carry and stack the rated load safely.

Heavy-duty ISO corner castings allow rapid lifting with container spreaders, reach stackers, and mobile cranes even under maximum rated payload. The castings feed the entire lifting force into the main structural frame, so the loaded rack can be craned on and off a vessel or trailer in a single controlled lift without any additional rigging under the deck.

Temporary bridges, heavy machinery skids, and industrial depot decks

Beyond maritime logistics, commercial contractors frequently deploy flat racks as temporary modular vehicle bridges across construction trenches, heavy equipment washing platforms, and elevated machinery staging decks. The same qualities that make the rack carry a 40-tonne casting at sea, a stiff steel chassis and a high friction timber deck, make it an excellent ground-level load platform on site.

The extreme structural rigidity of the steel bottom chassis provides safe, load-bearing ground support over soft or uneven terrain without structural failure. Laid across a trench or over soft ground, the rack spreads wheel and track loads across its full length, letting plant cross safely where the bare ground would not hold. When the task is finished, the rack is simply craned away and returned to freight service.

Maintenance procedures and folding mechanism care

To ensure smooth operation, inspect the end-wall locking pins, counter-balance torsion springs, and hinge pivots semi-annually, applying heavy-duty water-resistant grease. Replace any damaged floor timber planks to maintain continuous deck integrity. Because the deck takes the direct abuse of tracked and skidded loads, budgeting for occasional plank replacement keeps the platform safe and level for the loads that follow.

When stacking collapsed flat racks for storage, ensure corner locking pins are fully engaged into corresponding corner castings for safe vertical stacking. Inspect the main sills for any impact damage after each heavy movement, and keep the lashing rings clear of paint build-up and debris so their full rated capacity remains available when the next load is secured.

Depot inventory and specialized heavy transport across Central Europe

We maintain comprehensive stocks of inspected 40ft used flat rack containers across major German depot locations for prompt dispatch. Every container is individually photographed and graded to ensure full transparency before purchase, so you can confirm the condition of the deck, sills, and end walls before you commit to a unit.

We arrange specialized low-loader heavy transport and crane offloading services to deliver your flat rack container directly to your project site. Our team advises on lashing points, load spreading, and permits for oversized movements, helping you turn a 40ft used flat rack container for sale into a ready platform for your heaviest and most awkward cargo.

What is the primary operational purpose of a 40ft flat rack container?

A flat rack container is designed for transporting oversized, heavy, and out-of-gauge (OOG) project cargo that cannot fit into standard containers. Bulldozers, yacht hulls, large turbines, and industrial tanks can be loaded directly from the top or sides. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

How do the collapsible end walls operate for empty repositioning?

The end walls fold flat onto the deck using counterbalanced torsion spring assists. When folded flat, four to five empty flat racks can be interlocked with twistlocks into the exact dimensions of a single standard 40ft container for economical empty repositioning.

What are the exact dimensions and weight ratings of this flat rack?

External dimensions are 1219.20 cm length, 243.79 cm width, and 259.11 cm height. Internal deck dimensions are 1165.20 cm length, 237.49 cm width, and 195.91 cm height, providing 27.67 m² of deck space, 4,800 kg tare, and an extraordinary 45,000 kg max gross weight rating. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

What lashing and tie-down provisions are built into the flat rack?

The chassis features heavy forged steel lashing D-rings rated at 5,000 kg each welded along the bottom side rails and corner posts. These anchor points allow rigging crews to secure heavy machinery with chains, turnbuckles, and heavy polyester ratchet straps. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

Is the 40ft used flat rack container CSC certified for international shipping?

Yes, every inspected used flat rack meeting Cargo Worthy standards is supplied with an active CSC safety approval plate. It is fully certified under ISO standards for multimodal transport via road chassis, rail wagons, and container cargo vessels worldwide. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.
