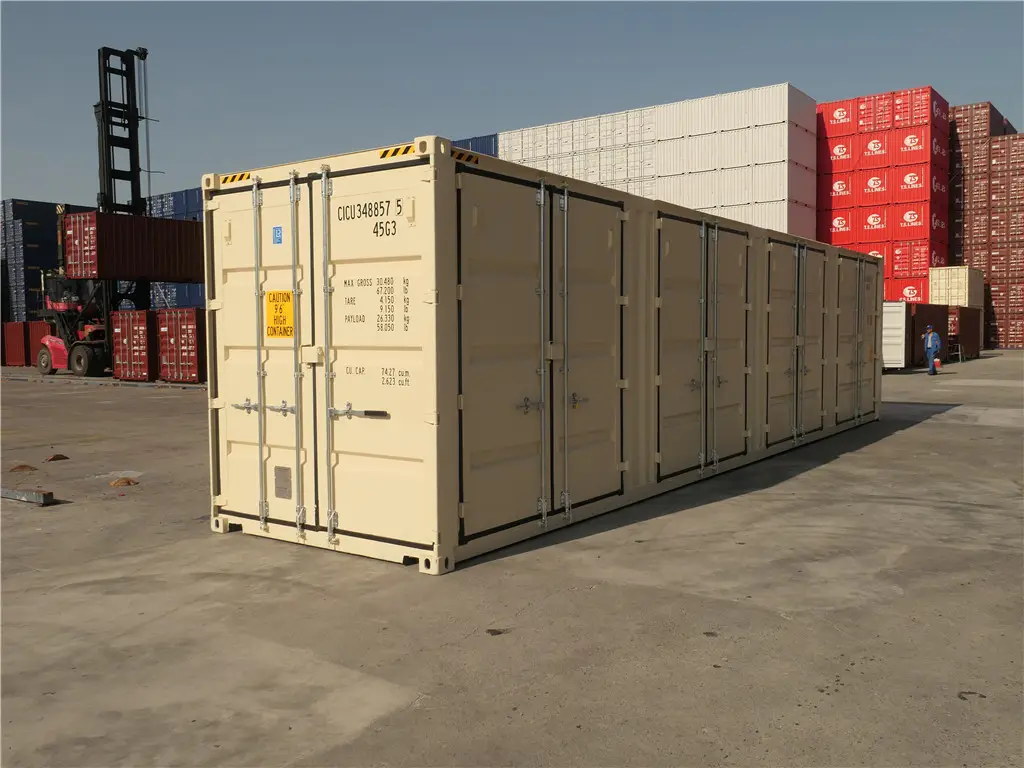

40ft New High-Cube Segmented Side-Door Container

excl. VAT · incl. VAT: €11,424.00

Twelve-meter full-length lateral access: 40ft new high cube side door container for sale

For large-scale distribution operations, timber mills, pipe manufacturers, and event staging crews that must load extra-long materials or deploy multiple forklifts simultaneously along the side profile, choosing a 40ft new high cube side door container for sale delivers extraordinary lateral access. Measuring 1219.20 cm in outer length, 243.79 cm in width, and 289.61 cm in height (9ft 6in), this specialized 76.40 m³ High Cube unit integrates multi-leaf bi-folding steel doors across its entire twelve-meter sidewall in addition to standard end cargo doors. The internal dimensions of 1203.20 cm length, 235.20 cm width, and 247.10 cm height give a genuinely vast, fully accessible loading face along the whole length of the box.

Weighing 4,000 kg in unladen tare condition, the container features an unblocked lateral entrance that allows operators to stage pallets rapidly with multiple warehouse trucks. Shipped in single-trip condition directly from shipyard fabrication, each unit arrives spotless, dry, and ready for immediate deployment. A 40ft new high cube side door container for sale combines the extra height of the High Cube profile with full-length side access, so tall palletised loads can be indexed straight into any position without shuttling them down the length of the container.

The twelve-meter opening is the defining advantage of this format. Where a standard end-loaded 40ft box forces a strict first-in, last-out loading order, this unit exposes every pallet position at once, which makes it ideal for high-frequency picking, long-material storage, and rapid simultaneous loading by several forklifts working side by side.

Heavy Corten A roof box-beams and open-side portal engineering

Engineering a twelve-meter side opening without a permanent center pillar requires advanced structural reinforcement. The upper side roof header is fabricated from an oversized, heavy cold-formed Corten A steel box-beam section that absorbs vertical roof loads and transfers forces smoothly to the corner columns. Over a full twelve-metre span this header must do considerable structural work, so it is engineered well beyond the loading of a standard sidewall to keep the box square with the entire side open.

The lower bottom side rail is similarly reinforced with high-strength structural channel steel to resist deflection under concentrated forklift wheel traffic. The rear end wall, front wall, and stamped roof sheets (2.0 mm thick) are continuously seam-welded from high-tensile Corten weathering steel, providing long-term resistance against atmospheric rust and structural distortion. Under outdoor exposure the Corten alloy forms a protective oxide patina that arrests deeper corrosion, so the reinforced frame holds its strength across decades of service.

This portal reinforcement lets the unit retain the ISO corner casting ratings of a standard High Cube box despite the open side, so it stacks, cranes, and transports on ordinary handling equipment exactly like any other certified 40ft container.

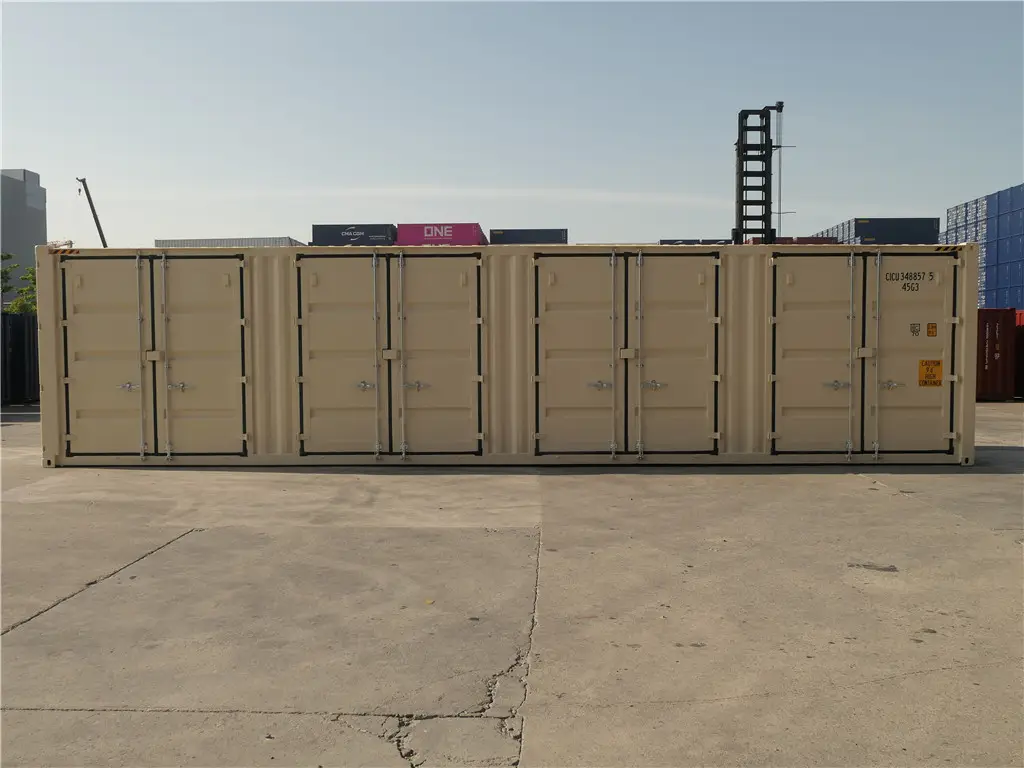

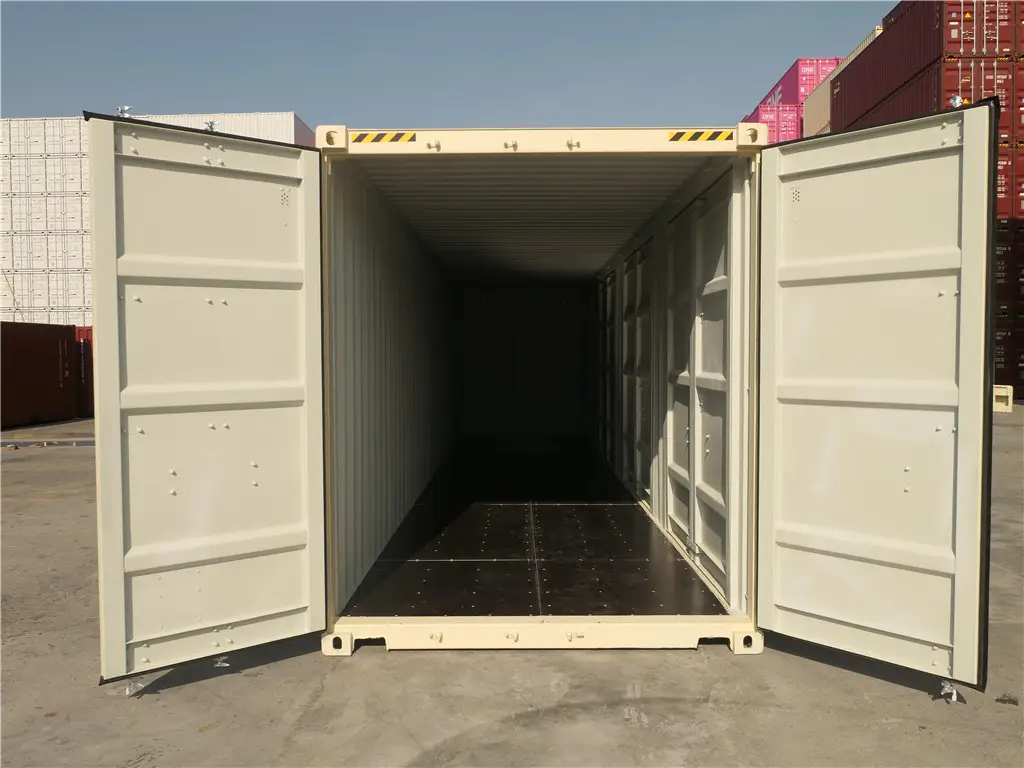

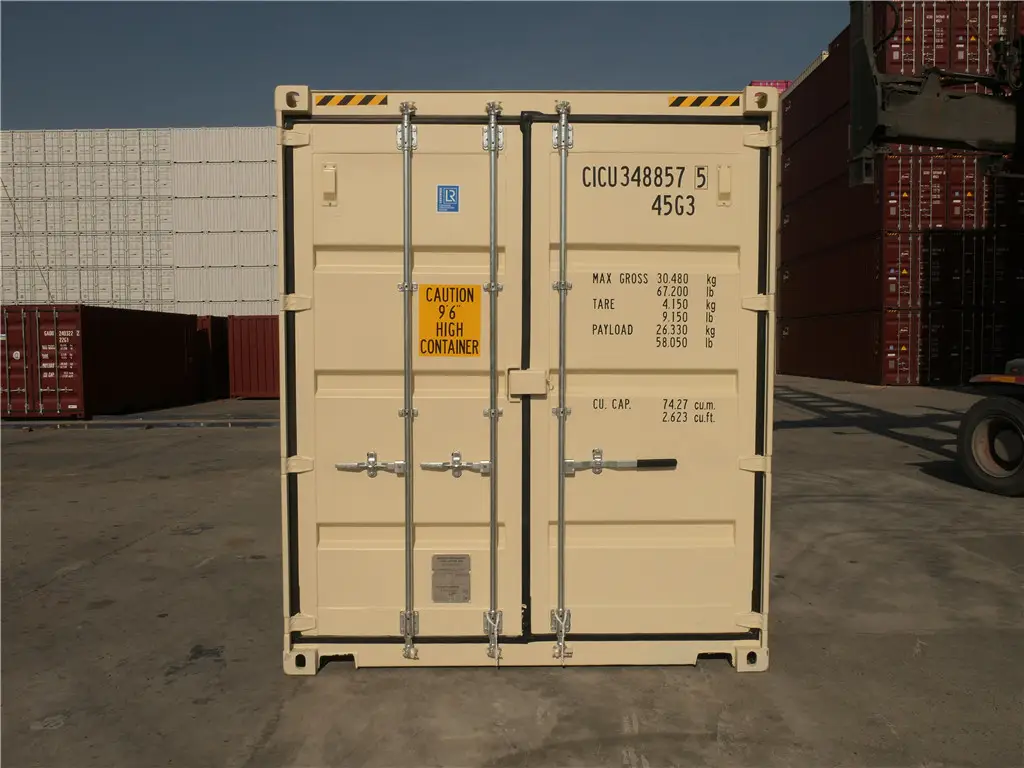

Four-leaf bi-folding side doors, dual end doors, and full perimeter gaskets

The 12-meter side aperture is secured by four interconnected bi-folding steel door panels that fold completely flat against the perimeter corner posts. Forged steel hinge knuckles with greaseable pins support each door leaf, while heavy vertical locking bars seat hardened cams into top and bottom frame keepers. Folded back, the panels clear the full length of the opening so several forklifts can work the load at once from the side.

Multi-lip continuous EPDM rubber weather seals border all side folding panels and end doors. When clamped shut, they establish an impermeable wind-and-watertight seal that prevents rainfall, blowing dust, and road salt spray from entering the storage chamber. Each locking bar draws its leaf progressively tighter against the gasket, so a twelve-metre run of doors seals evenly along its full length and protects tall palletised stock exactly like a solid-walled box.

Because a full-length side of folding doors is operated far more often than a standard container's rear doors, the hinges and locking gear are built for repeated daily cycling. Our depot works every leaf before dispatch to confirm smooth folding, positive latching, and even gasket compression across the whole aperture.

28 mm marine hardwood flooring and lateral pallet handling

The interior deck consists of 28 mm multi-ply tropical hardwood marine plywood, pressure-sealed with certified fungal and moisture-resistant compounds. Supported by closely spaced transverse steel crossmembers, the floor easily withstands intense wheel loads from heavy diesel forklifts and electric pallet trucks. With forklifts entering from the side along the whole length, the deck sees concentrated wheel traffic across its full run, so the dense marine ply and tight crossmember spacing are essential to carry that loading without flexing.

Multiple forged steel lashing D-rings rated at 1,000 kg each are welded along the bottom side rails and upper corners. These anchor points allow equipment operators to secure long steel beams, timber bundles, and machinery crates firmly with heavy ratchet tie-down straps. The full-length opening is particularly suited to loading long materials that could never be fed through end doors, and the lashing points keep those loads restrained in transit.

Factory-installed dual lockboxes and multi-point access security

Protecting valuable tools, machinery, and equipment on jobsite perimeters is essential. Every 40ft new high cube side door container for sale comes equipped with factory-welded Corten steel lockbox shrouds on both the side folding doors and rear doors. Defending both openings ensures that neither the long side nor the end doors becomes the weak point an intruder targets first.

The steel shroud shields an internal padlock from physical attacks with bolt cutters, pry bars, and battery angle grinders. Secondary padlock eyelets on the locking handles provide additional multi-tier keying capabilities for contractor management, so site access can be granted or restricted separately on the side and the end of the unit.

Passive airflow louvers and multi-coat marine paint system

To reduce internal moisture accumulation caused by day-to-night temperature changes, multiple labyrinth air vents are recessed into the upper sidewall corrugations. These baffled vents permit cross-flow airflow while completely barring water ingress. This passive ventilation is especially valuable in a tall High Cube box, where the larger internal air volume can otherwise hold more moisture that condenses on the roof as temperatures fall overnight.

The exterior steel envelope receives a zinc-rich epoxy primer followed by an ultra-tough polyurethane marine topcoat that resists UV weathering and salt-laden atmosphere. This durable finish can be specified in any RAL color, allowing the container to be matched to a corporate livery or event brand before it leaves the depot.

CSC safety approval plate and international multimodal transit

Every single-trip 40ft new high cube side door container for sale carries a valid Convention for Safe Containers (CSC) safety approval plate riveted to the cargo door. Certified by international classification agencies like Bureau Veritas or DNV GL, the unit is approved for road chassis, rail flatcar, and container ship transport. This certification confirms that the reinforced open-side portal frame meets the same stacking and racking standards as a conventional High Cube box.

Standard ISO corner castings at all eight structural nodes permit rapid lifting and securing using reach stackers, spreader beams, twistlocks, and bridge fitting clamps. The unit therefore drops onto any standard container chassis or foundation and can be relocated cleanly whenever your operation or event network moves to a new site.

Versatile conversion base for exhibition stands, pop-up stores, and cafes

Due to its dramatic 12-meter opening facade, this side-access High Cube container is the premier base for experiential event architecture. Marketing agencies frequently convert these units into mobile vehicle showrooms, festival pop-up restaurants, and open-air concert stages. When the full side folds away, the container opens into a twelve-metre display or serving frontage with generous High Cube headroom, while remaining a secure lockable shell during transit and overnight.

We install glazed sliding doors, hydraulic awning flaps, electrical breaker panels, LED strip lighting, and internal thermal insulation packages prior to delivery, providing turn-key utility tailored to your project. This lets an operator roll a complete, weatherproof, lockable unit into position, open it out for the public, and secure it again without ever unloading the fit-out.

Maintenance practices and level ground positioning

Maintaining a side-door container requires checking hinge alignments. Apply water-resistant grease to door hinge nipples and locking bar guides semi-annually, and clean the perimeter door gaskets with mild water annually. Because a full-length folding side carries many more hinges and locking rods than a standard box, this simple routine keeps every leaf folding smoothly and sealing evenly over years of frequent operation.

Always place the unit on four level concrete foundation pads or timber blocks. Keeping the corner castings level prevents door binding and guarantees smooth door closure over decades of service. On a twelve-metre open-side unit a level base is especially critical, since even a small rack in the long frame shows up immediately as folding leaves that no longer sit flat or latch cleanly along their full run.

Depot inventory and crane truck transport across Europe

We maintain comprehensive stock of brand-new single-trip 40ft side-opening containers across German logistics hubs for rapid dispatch. Each unit undergoes strict pre-delivery inspection to ensure immaculate interior cleanliness, dry flooring, and smooth hardware operation, and our team can walk you through the door configuration and fit-out options before you order.

Deliveries can be coordinated via standard flatbed haulage or with specialized crane trucks that place the container directly onto your designated site coordinates with millimeter accuracy. Our technical team is available to assist with specifications, site access assessment, and rapid European dispatch, so the unit arrives ready to open and load along its full length on the day it is set down.

What is the operational advantage of a 40ft high cube segmented side door container?

The segmented bi-folding side doors allow direct lateral loading along the entire 12-meter length with forklifts and cranes. The High Cube height provides an extra 30 cm of vertical clearance, providing 76.40 m³ of storage volume for oversized machinery and long materials.

Are the segmented side folding doors completely wind and watertight?

Yes, each folding door segment is manufactured from pressed Corten steel, fitted with multi-lip EPDM compression gaskets, and locked with heavy vertical locking bars into reinforced top and bottom rails, providing certified wind-and-watertight (WWT) weather protection. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

Are factory lockboxes included on both side and end doors?

Yes, heavy-duty Corten steel lockboxes are welded at the factory on both the segmented side folding doors and the standard end cargo doors. These protective housings enclose high-security padlocks to prevent bolt cutters and pry bars from accessing the lock shackles.

What are the exact external and internal dimensions of this container?

External dimensions are 1219.20 cm length, 243.79 cm width, and 289.61 cm height. Internal dimensions are 1203.20 cm length, 235.20 cm width, and 247.10 cm height, providing 28.37 m² of floor space, 76.40 m³ of volume, and a tare weight of 4,000 kg with 30,480 kg max gross. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.

Is the 40ft high cube side door container CSC certified for international shipping?

Yes, every new one-trip side door container is delivered with an active CSC safety approval plate. The container is fully certified under ISO standards for multimodal transport via road flatbeds, rail wagons, and container cargo vessels worldwide. Our technical team is available to assist with specifications, site preparation, and rapid European dispatch for your facility.
